Hotpoint Indesit Ariston Tumble Dryer Pulley Jockey Wheel Bracket Replacement

Replacement Jockey Wheel Pulley and Bracket for compatible Hotpoint, Ariston and Indesit tumble dryers.

This replacement tumble dryer jockey wheel and bracket assembly is designed to maintain the correct tension on the main drive belt, helping the drum rotate smoothly during drying cycles.

A worn or damaged jockey wheel can cause squealing, rattling, excessive noise or belt slipping. Replacing the tension pulley assembly can help restore correct belt tension and smooth drum operation.

Key Features

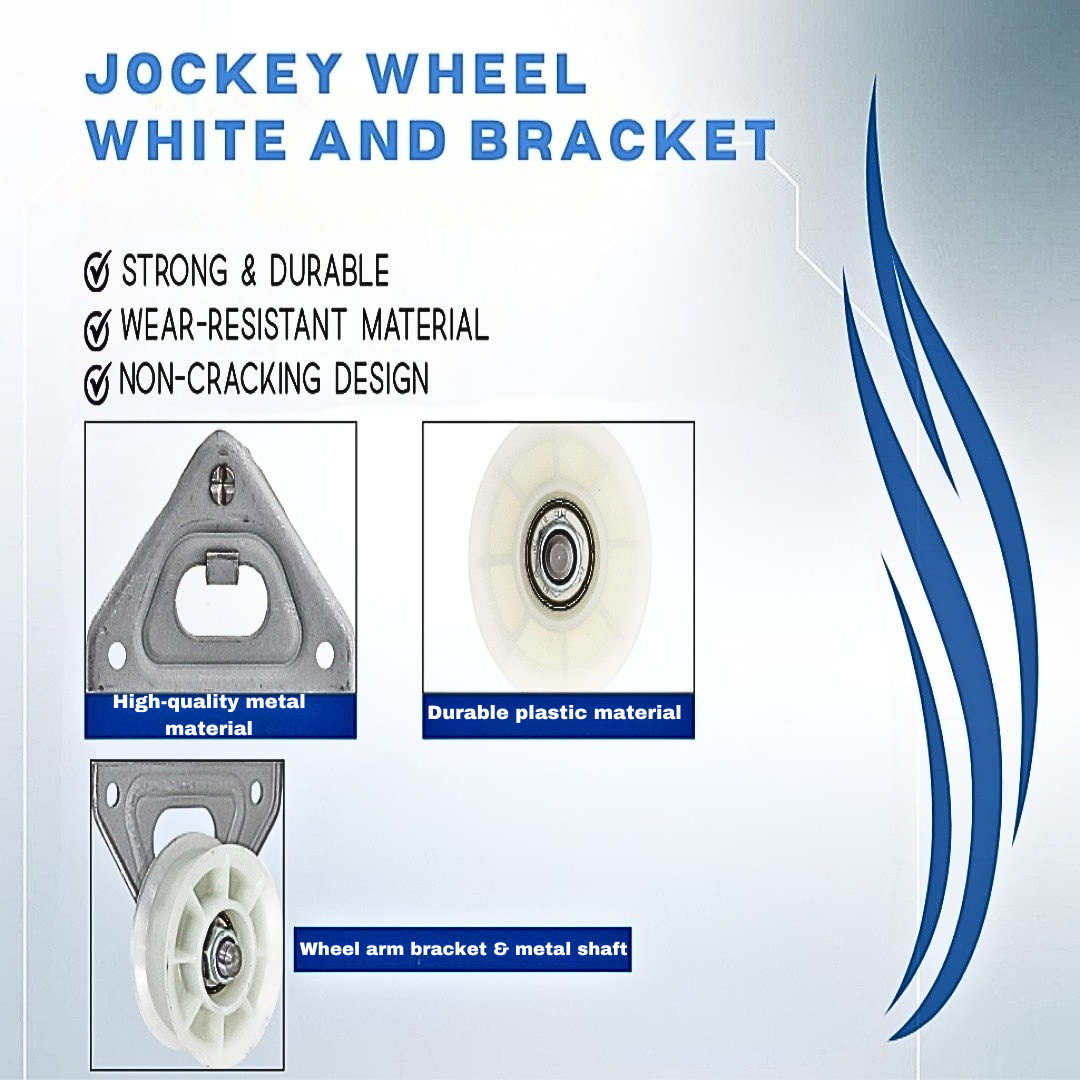

• Complete jockey wheel and bracket assembly
• Replacement tumble dryer tension pulley
• Compatible with part number C00113879
• Reference number 1702973
• Also replaces selected C00504520 applications
• Helps maintain correct drive belt tension
• Helps reduce belt slipping
• Helps support smooth drum rotation
• Durable plastic pulley wheel

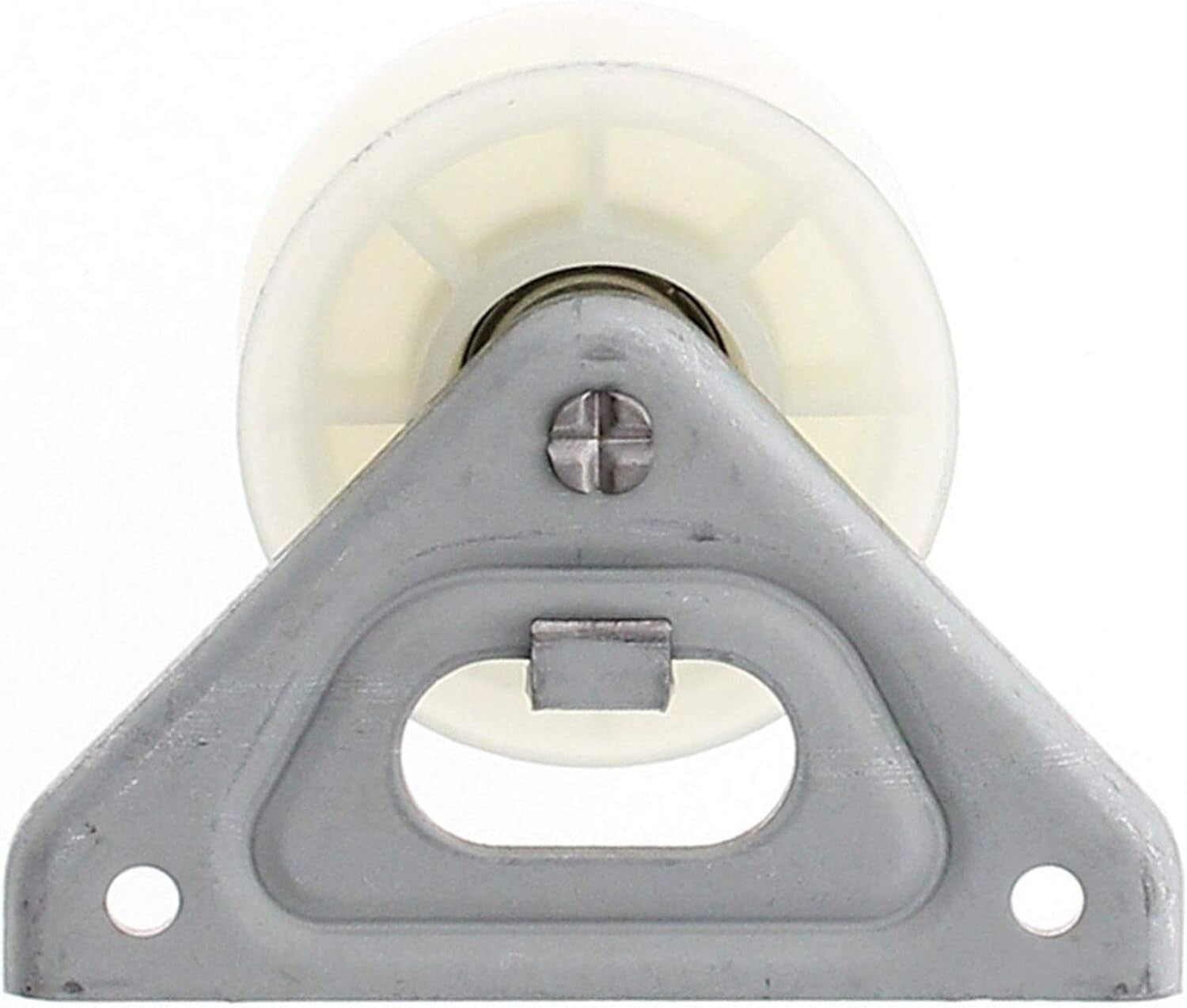

• Metal mounting bracket
• Suitable for selected Hotpoint tumble dryers
• Suitable for selected Ariston tumble dryers
• Suitable for selected Indesit tumble dryers

Compatibility

Suitable for selected tumble dryers from:

• Hotpoint
• Ariston
• Indesit
• Creda

Example compatible models include selected:

• AQC Series
• CTD Series
• TCD Series
• TCM Series
• TCF Series
• TCY Series
• IDC Series
• IS Series
• AS Series
• ASL Series
• ADE Series
• ALE Series

The exact compatibility depends on the appliance model. Sources list C00113879 across numerous Hotpoint and Ariston tumble dryer models.

Product Specifications

Product Type: Tumble Dryer Jockey Wheel and Bracket
Part Number: C00113879
Alternative Reference: 1702973
Other Reference: C00504520
Function: Belt Tensioner / Jockey Pulley
Wheel Material: Plastic
Bracket Material: Metal
Wheel Colour: White
Application: Tumble Dryer
Pack Quantity: 1

Complete Measurements

Overall Assembly Length: Approx. 85 mm / 8.5 cm / 3.35 in
Overall Assembly Width: Approx. 42 mm / 4.2 cm / 1.65 in
Overall Assembly Height: Approx. 68 mm / 6.8 cm / 2.68 in

Pulley Diameter: Approx. 52 mm / 5.2 cm / 2.05 in
Pulley Width: Approx. 25 mm / 2.5 cm / 0.98 in
Axle Diameter: Approx. 7 mm / 0.7 cm / 0.28 in

Weight: Approx. 90 g

The 85 x 42 x 68 mm assembly dimensions and 52 mm pulley diameter are supported by parts listings for this reference.

Package Contents

1 x Replacement Tumble Dryer Jockey Wheel Pulley and Bracket

Important Notice

This is a compatible replacement spare part and is not manufactured, supplied or endorsed by Hotpoint, Ariston or Indesit unless specifically stated otherwise.

The brand names, appliance models and part numbers are used only to identify compatibility.

Please check your exact tumble dryer model and existing part before ordering.

For safety, disconnect the appliance from the mains before carrying out repairs.
